Sun Roof / Shooting Hatch / Wide Opening Roof Windows

Vehicle Sun Roof / Wide Opening Roof Window / Vent / Shooting Hatch / Deck Hatch – use where increased access, light and ventilation is needed but not at the expense of security.

Our vehicle Roof windows feature E43 Toughened Glass with Aluminium Frame, they are Wide Opening with Gas Struts and Lock, 70% No-light transmission dark tint. Although designed for the roof of vehicles they can also be fitted as a Side Window, but you will need to carefully drill small drain holes into the bottom of the aluminium frame to discharge water.

Sunroof - 990 x 790mm - DARK tint (Special Order)
+3

Sunroof - 990 x 790mm - DARK tint (Special Order)

SKU DEF990x790-SR
£432.00
In stock
1
Product Details

Sun Roof - 990 x 790 mm - DARK tint for all kinds of vehicles

This Sunroof has a variety of uses where increased access, light and ventilation is needed but not at the expense of security.

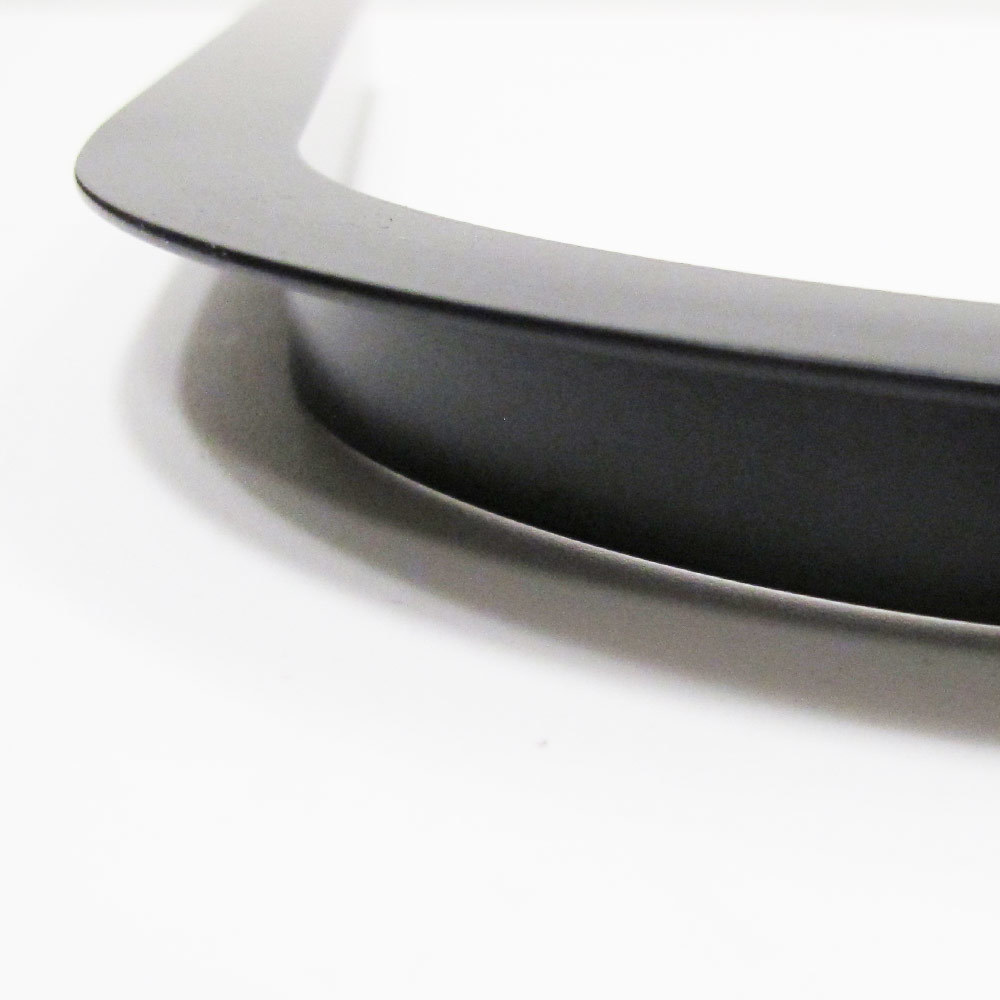

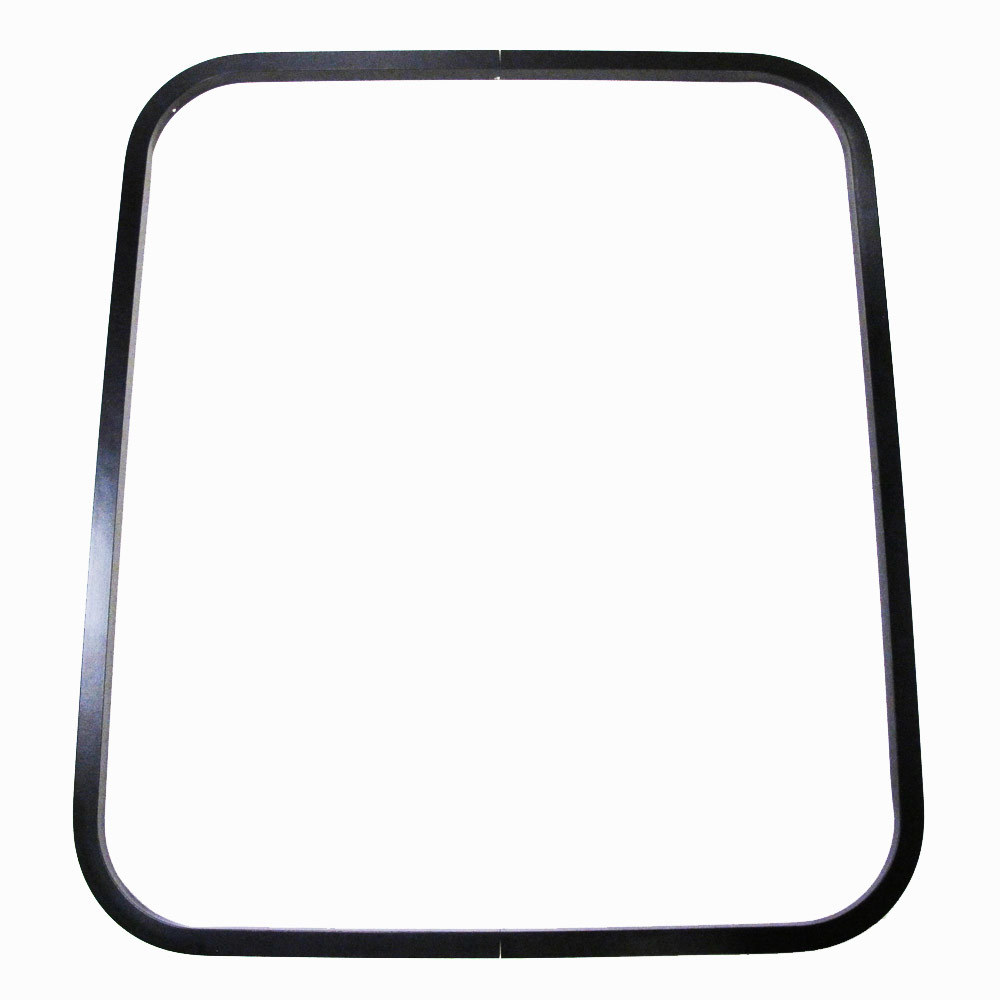

Includes Internal Bezel Trim (aluminium L section 20mm x 20mm, black powder-coat paint). This bezel can be used as a template to cut out the aperture.

Once you have cut the correct shaped aperture for the Sun Roof, you will need rivets and silicone sealant to attach the Sun Roof.

Please block the drain holes with silicone sealant when used horizontally on a roof. This Sun Roof can also be used vertically on its side - in which case do not block the drain holes.

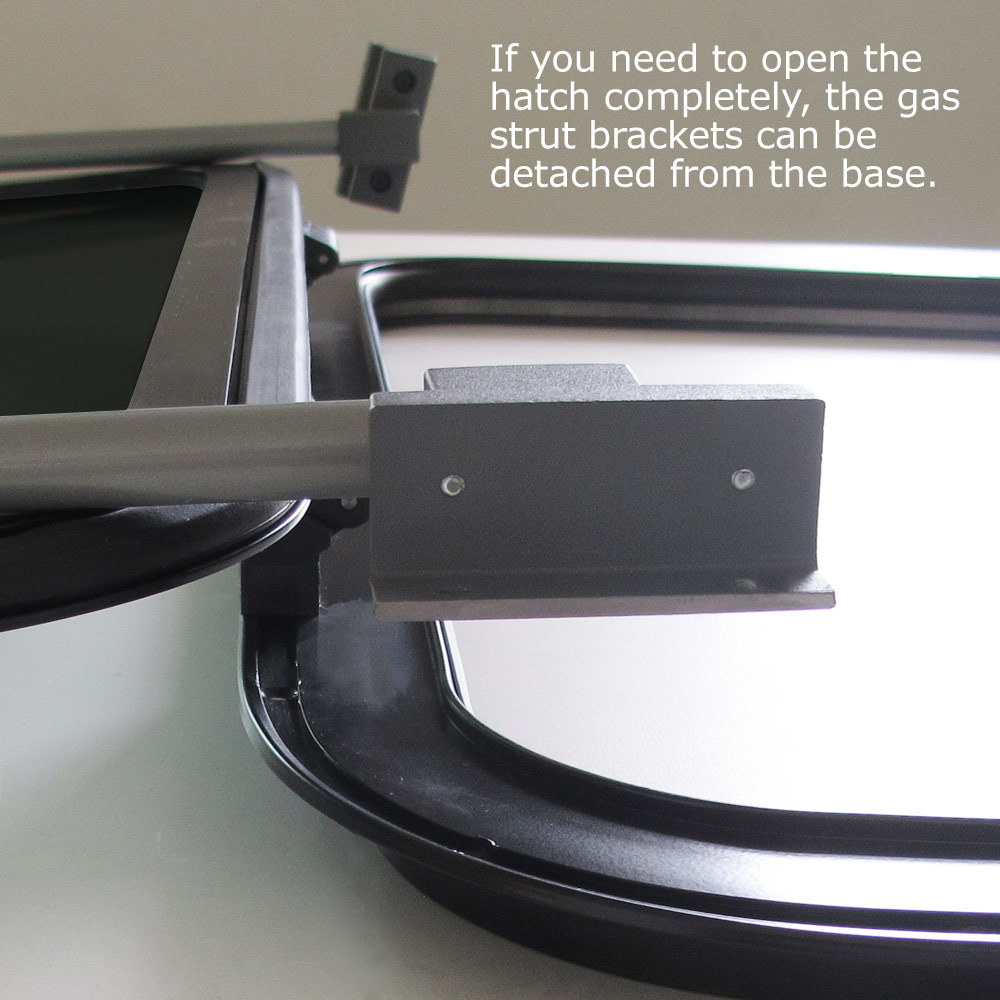

If you need the Sun Roof completely wide open the gas strut brackets can be unscrewed from the frame.

PLEASE NOTE: You need to abide by all laws, regulations and standard practices with regard to the fitting and usage of these windows.

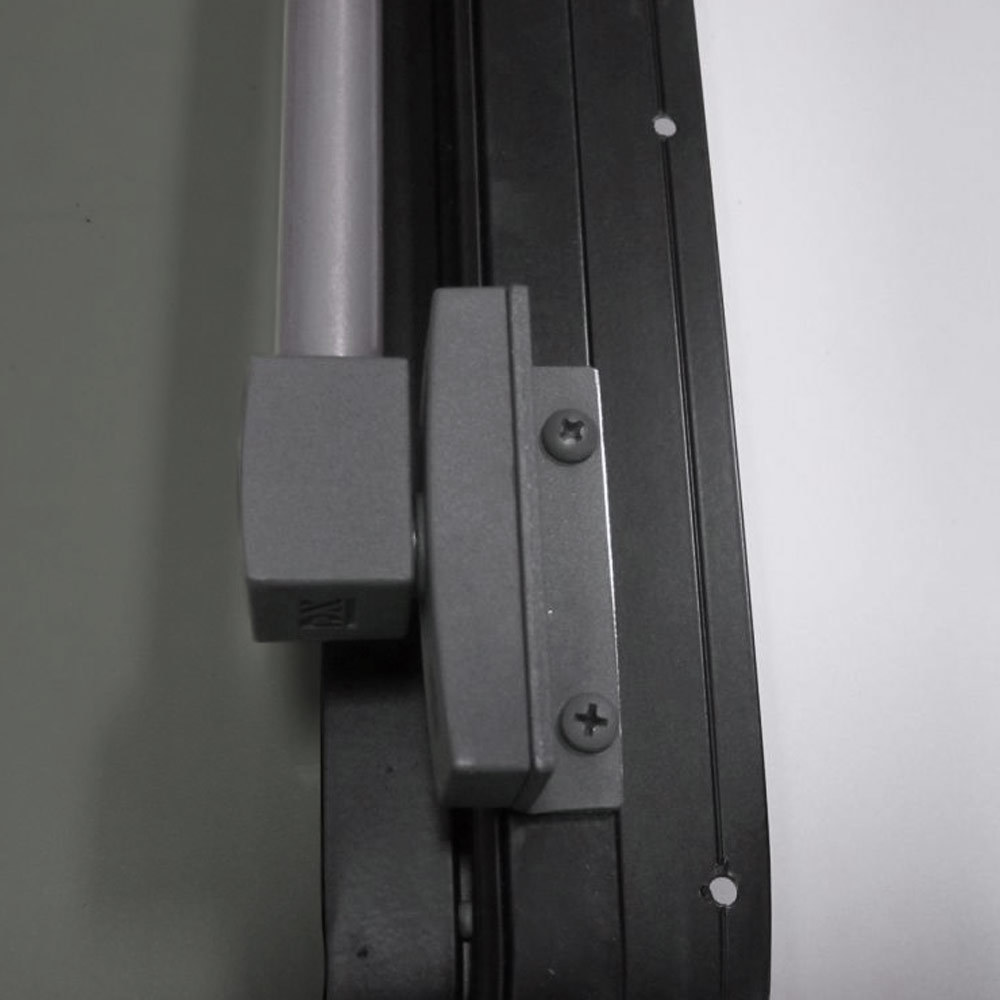

  • Includes two Gas Struts for smooth opening and closing.

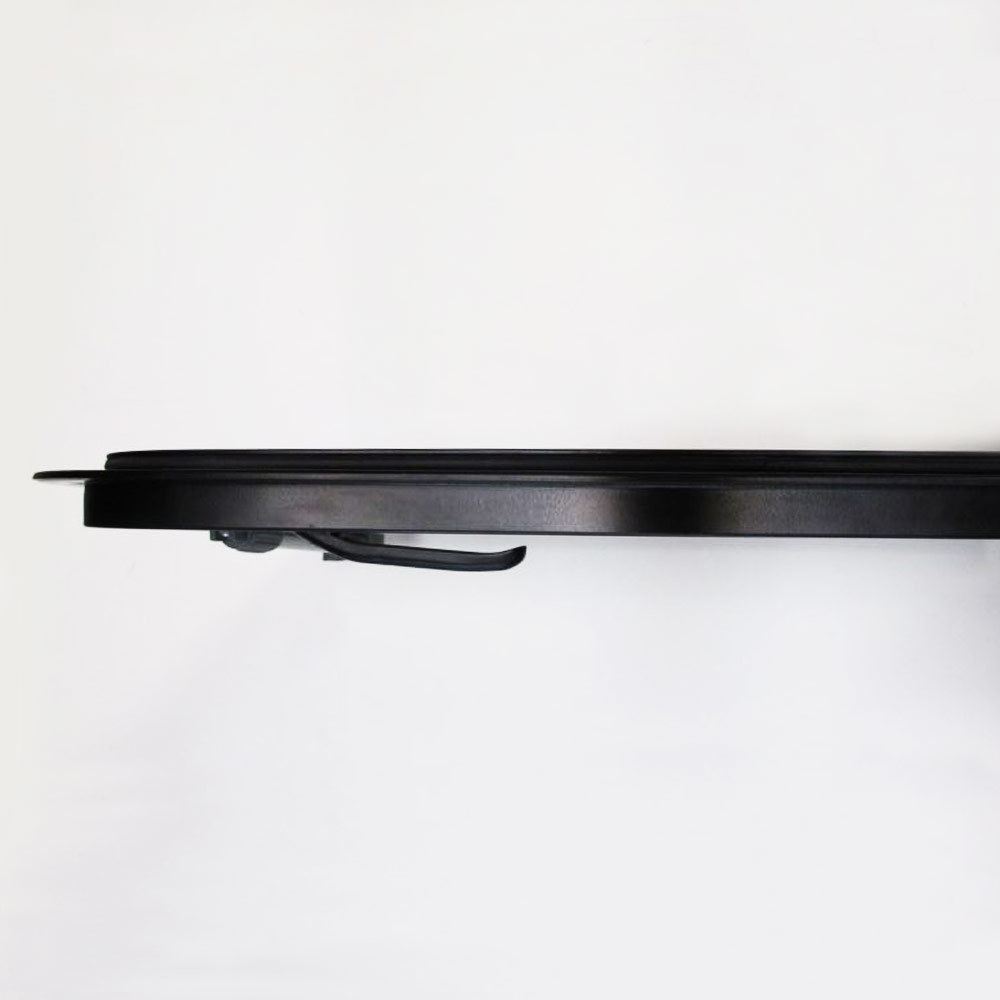

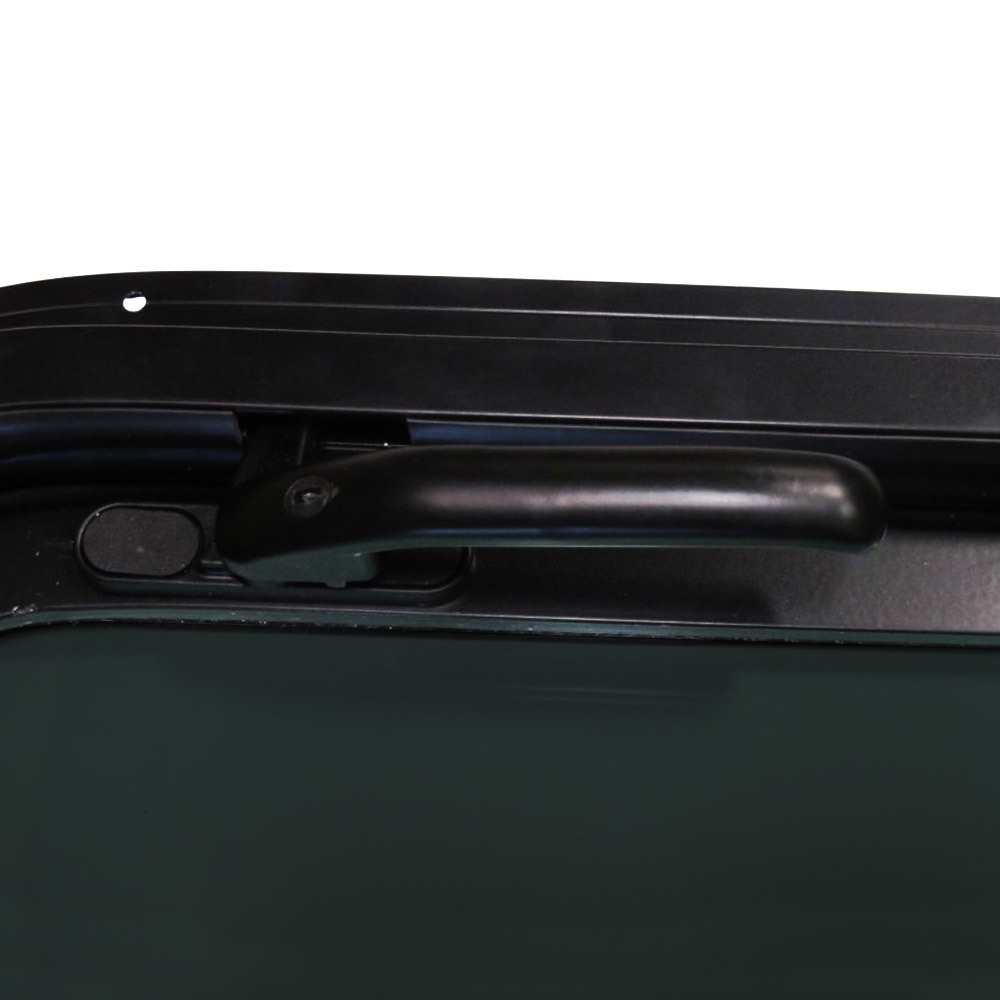

  • Two handle locking with keys.

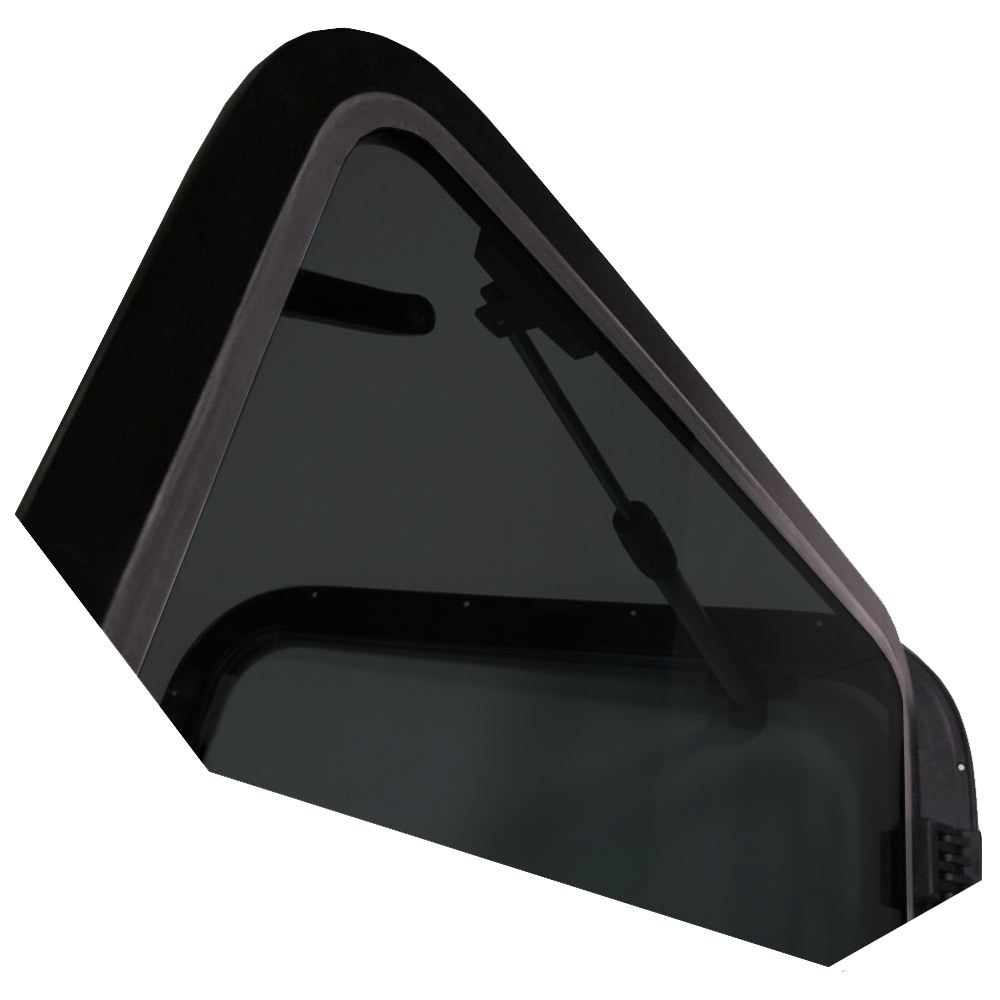

  • The maximum amount these windows open is as seen in the above photo and is 200mm from the vehicle body.

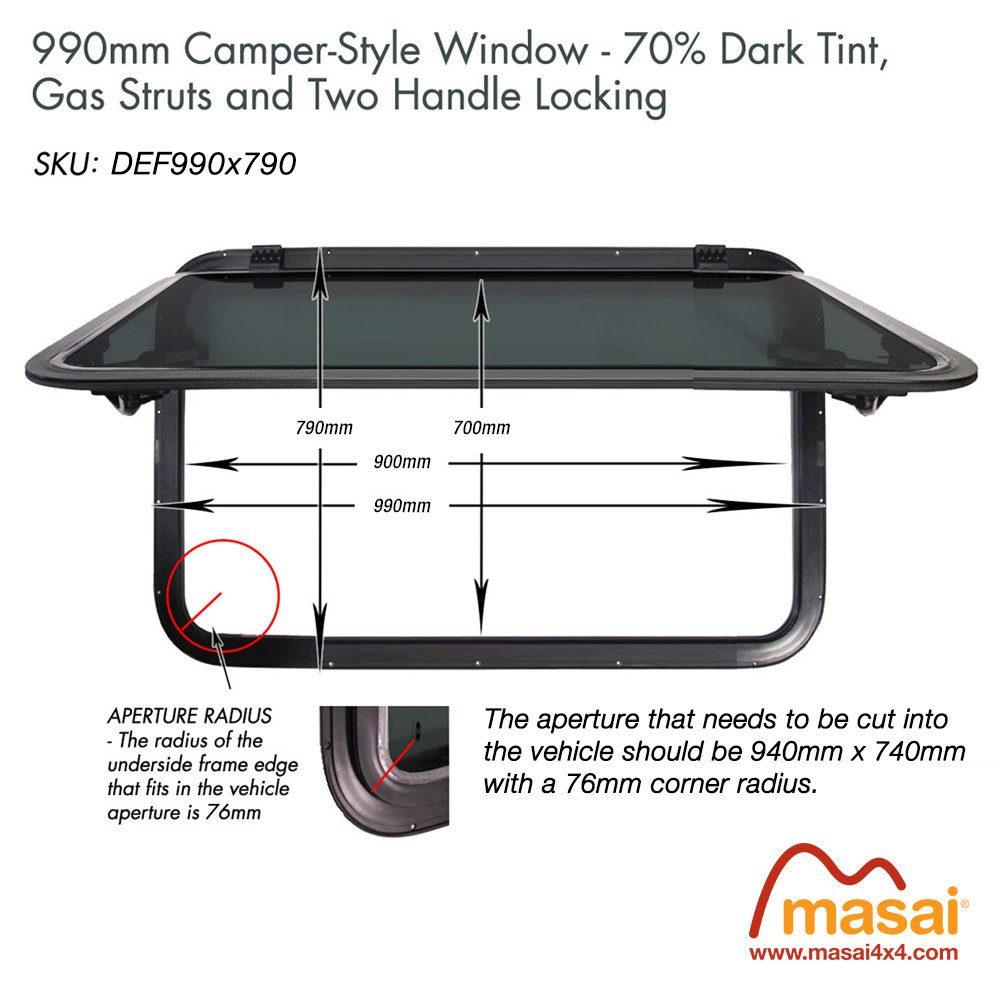

  • Measurements: 990mm x 790mm external max.

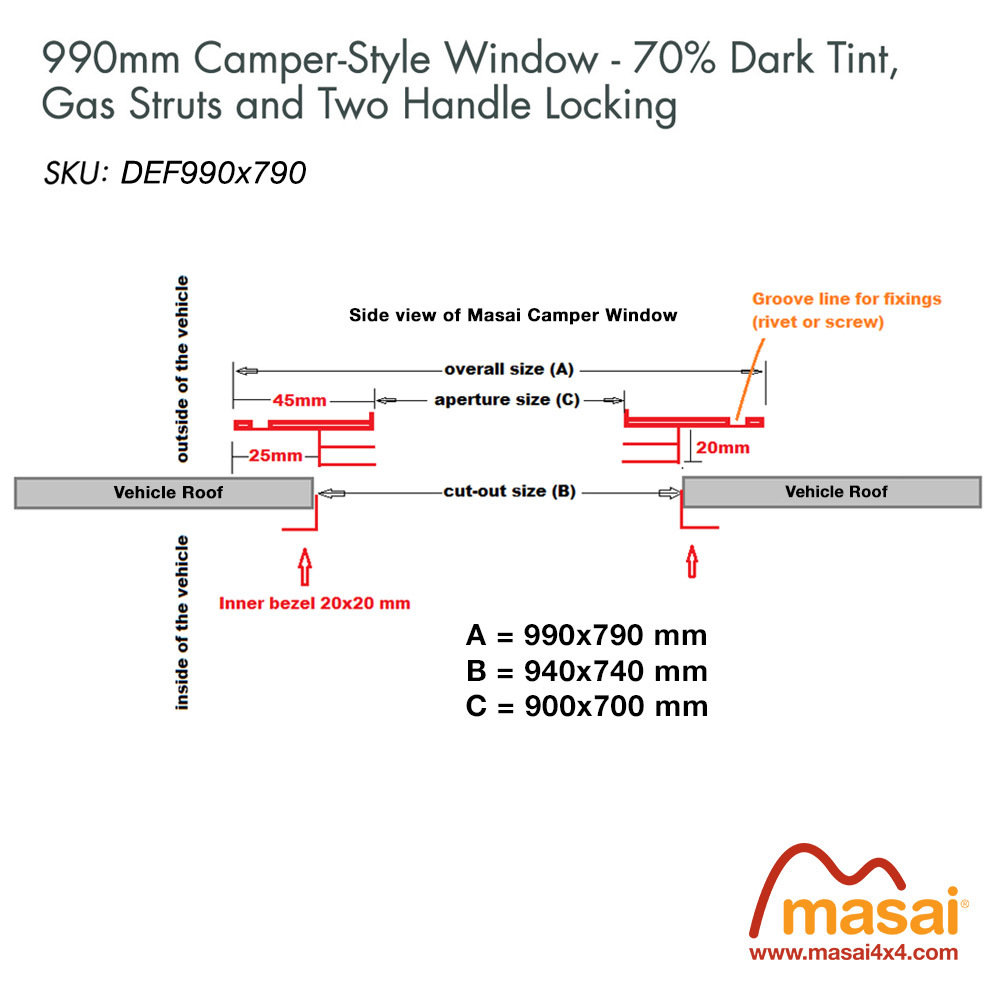

  • The internal area is 900mm x 700mm (see diagram).
  • The size of the aperture you need to cut out is 940mm x 740mm (see diagram).
  • The corner radius of the aperture you need to cut out is 76mm (see diagram).
  • Black powder-coat painted aluminium frame.
  • Includes rubber seal and internal bezel.
  • E43 4mm toughened safety glass.
  • 70% No-Light transmission Dark Tint.
  • Factory prepared tint - not a stuck on film.
  • Easy to fit DIY.
  • Fitting service also available - just call.
  • Price is for one Sun Roof.

Can be fitted to :

  • Land Rovers and other 4x4
  • Other Shooting/Leisure vehicles
  • Trucks with Sleeping Pods
  • Coaches and Lorries
  • Horseboxes
  • Motor Caravans / Motor Home
  • Towed Caravans
  • Porta-cabins / Mobile Buildings / Other Enclosure
  • Sailing Boats and Narrow Boats as a Deck Hatch possibly - call to discuss

Optional extras

  1. Rivets and Sealant

Download ......Fitting Instructions

Note: These fitting instructions are NOT actually for this specific window but the principles are the same.
